Code Highlighting Styles

You set code highlighting formatting with User Style Types.

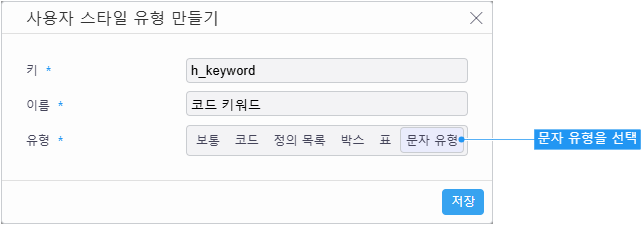

Creating User Style Types

To create user styles for code highlighting formatting, follow these steps.

  1. Go to the <Style | Theme> menu.

  2. Click the <User Style Type> link.

  3. Click the <Create User Style Type> link.

  4. Enter the key and name. Select Character as the type.

  5. Click the button.

Keys

The following keys are supported when you create user style types.

User style type keys for code highlighting

Key

Description

h_comment

Comment

h_keyword

Keyword

h_string

String

h_number

Number

h_attribute_name

Attribute name (XML)

h_attribute_value

Attribute value (XML)

h_css_name

CSS property name

h_css_value

CSS property value

h_selector

CSS selector

h_tag_selector

CSS tag selector

h_dynamic_script

JSP script delimiters (<%, %>)

h_line_number

Line number

All keys must start with h_. r_ is automatically added before the key and _span after it(for example, r_h_keyword_span). Keys that start with h_ do not appear in the editor's character type list.

Keys for which you do not create a user style type are highlighted in the default colors. Create only the keys whose formatting you want to change.

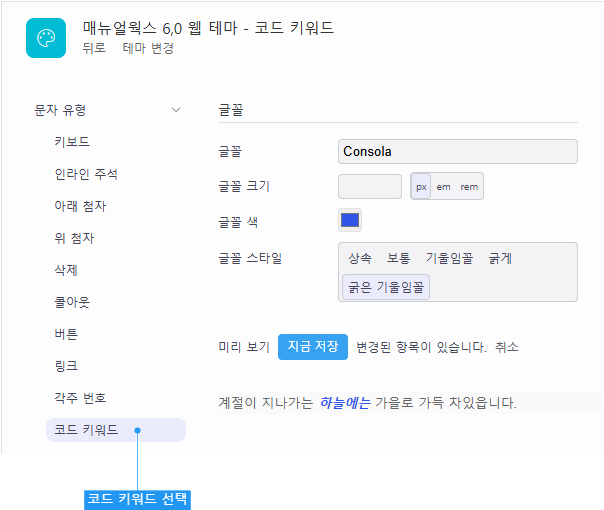

Setting the Theme

Set the formatting in the theme's character types.
