Introduction

Most companies and organizations have employee and customer databases. When they adopt ManualWorks, they face the inconvenience of managing some of that data twice. To solve this, ManualWorks can manage users with OAuth 2.0. OAuth 2.0 is also used to integrate ManualWorks with an in-house authentication system through SSO (Single Sign-On). If OAuth 2.0 is hard to apply in your environment, you can also handle login with JSP.

What Is OAuth 2.0?

OAuth 2.0 is an open protocol that lets applications control authentication and authorization securely. Its main components are as follows.

Authorization server

The server that handles user authentication, such as login. You add the functions required by OAuth to a website that can access your employee or customer database.

Client (ManualWorks)

The service that users can use after they log in through the authorization server. ManualWorks is the client.

Web browser

Connects the authorization server and ManualWorks through web browser redirects.

With OAuth 2.0, ManualWorks authenticates users as follows.

Publicly published documents can be accessed directly.

redirect_uri

The ManualWorks address to redirect the web browser to after successful authentication. It is the base URL followed by /r/oauth/auth.

state

A safeguard against duplicate calls. It is sent back as a query string parameter after successful authentication.

It might seem simpler to request the user profile directly instead of a token. However, OAuth is a framework for accessing many services and resources, not just for authentication. For example, it can be used to request address books or photo lists. That is why getting a token and requesting a service (the user profile) are separate steps.

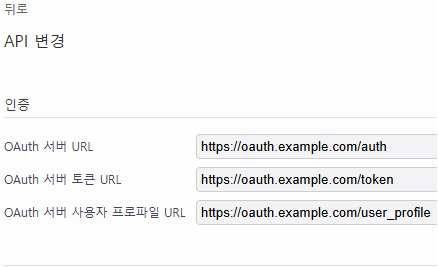

Setting the OAuth URLs in ManualWorks

Set the URLs of the authorization server that authenticates users in ManualWorks.

To log in with OAuth 2.0, you must set the base URL in General Settings. Otherwise, login fails with the error “The base URL is not configured.”

• The redirect_uri that ManualWorks sends to the authorization server is the base URL followed by /r/oauth/auth.

• Users must access ManualWorks with the same host as the base URL, because after login they return to the host of the base URL.

Implementing the Authorization Server

Implement the functions of the OAuth URLs you set in ManualWorks. There are three URLs to implement.

OAuth Server URL

The URL that authenticates users. If the user is not logged in, it sends the user to the login page. When authentication succeeds, it passes the authorization code to ManualWorks through a web browser redirect.

OAuth Server Token URL

The URL where ManualWorks exchanges the authorization code for an access token. ManualWorks calls the authorization server directly, not through the web browser.

OAuth Server User Profile URL

The URL where ManualWorks gets the user information with the access token. ManualWorks calls the authorization server directly, not through the web browser.

Implementing the OAuth Server URL

ManualWorks calls the authorization server through a web browser redirect with the following parameters.

redirect_uri

The ManualWorks address to redirect the web browser to after successful authentication. It is the base URL followed by /r/oauth/auth.

state

A safeguard against duplicate calls. It is sent back as a query string parameter after successful authentication.

response_type

Always code.

client_id

An empty value.

scope

email and the OAuth Server User Profile URL joined with a space.

When the user logs in to the authorization server successfully, redirect to redirect_uri with the following in the query string.

code

The code string. There is no required format.

state

The state value received from ManualWorks, passed back as is.

Note the following when you implement it.

• For security, you can also redirect to a predefined address (http://127.0.0.1:1975/r/oauth/auth).

• The state value helps prevent security problems caused by duplicate calls and code exposure. We recommend filtering out duplicate requests with the same state value when you implement the OAuth server.

Implementing the OAuth Server Token URL

ManualWorks sends a POST request to the authorization server with the following parameters in the request body in form format (application/x-www-form-urlencoded).

code

The code value received in the previous step.

client_id

An empty value.

client_secret

An empty value.

redirect_uri

The same address as in the authorization request.

grant_type

Always authorization_code.

The authorization server must return the result in JSON format.

Content-Type: application/json; charset=UTF-8

The JSON format is as follows.

{
  "access_token": "access token",
  "expires_in": 60
}

expires_in is the validity period of the access token in seconds.

Implementing the OAuth Server User Profile URL

ManualWorks sends a GET request to the authorization server with the following parameter in the query string.

access_token

The token value received in the previous step.

The authorization server must return the user information that matches the token to ManualWorks in the following format.

Content-Type: application/json; charset=UTF-8

Return the following.

{
  "id": "username",
  "name": "user's name",
  "email": "user's email address",
  "locale": "ko",
  "roles": "user's roles",
  "groups": "groups the user belongs to"
}

You can set several roles separated by semicolons. The available roles are as follows.

admin

editor

writer

reader

translator

You can set several roles separated by semicolons.

"roles": "admin;writer"

To manage roles in ManualWorks instead, set roles to 3rabbitz. Sending an empty roles value has the same effect, and the roles of existing users stay unchanged.

"roles": "3rabbitz"

In this case, the role given to new users is determined by the DEFAULT_ROLE setting in Changing the Initial Role. If it is not set, new users get the Write & Read role.

You can set several group identifications in groups, separated by semicolons. For group identifications, see Managing Groups.

"groups": "marketing;support"

To manage groups in ManualWorks instead, set groups to 3rabbitz.

"groups": "3rabbitz"

Synchronizing Group Names

If the name of a group received through OAuth changes, you can also change the group name in ManualWorks by running the following command in the Console.

set-preference -name SUPPORT_OAUTH_GROUP_SYNC -value true

The groups property is then handled as an array of objects instead of a string.

{
  "id": "username",
  "name": "user's name",
  "email": "user's email address",
  "locale": "ko",
  "roles": "admin;editor;writer",
  "groups": [
    {"id": "group_a", "name": "Group A"},
    {"id": "group_b", "name": "Group B"}
  ]
}

JSP Implementation Example

How you implement the authorization server depends on your programming language and development environment. The following example in Java and JSP can serve as a reference.

OAuthQueue.java

A Java class that links codes, tokens, and usernames.

package com.threerabbitz.oauth;

import java.util.LinkedList;
import java.util.UUID;

public class OAuthQueue {

    private static final int MAX_SIZE = 10000;

    private static OAuthQueue instance = new OAuthQueue();

    public static OAuthQueue getInstance() {
        return instance;
    }

    private LinkedList<OAuthInfo> queue = new LinkedList<OAuthInfo>();

    public synchronized String getCode(String user) {
        if (user == null) {
            throw new IllegalArgumentException("user_cannot_be_null");
        }
        OAuthInfo result = new OAuthInfo(user);
        queue.add(result);
        if (queue.size() > MAX_SIZE) {
            queue.removeFirst();
        }
        return result.code;
    }

    public synchronized String getToken(String code) {
        if (code == null) {
            throw new IllegalArgumentException("code_cannot_be_null");
        }
        for (int i = queue.size() - 1; i > -1; i--) {
            OAuthInfo info = queue.get(i);
            if (info.code.equals(code)) {
                return info.token;
            }
        }
        return null;
    }

    public synchronized String getUser(String token) {
        if (token == null) {
            throw new IllegalArgumentException("token_cannot_be_null");
        }
        for (int i = queue.size() - 1; i > -1; i--) {
            OAuthInfo info = queue.get(i);
            if (info.token.equals(token)) {
                return info.user;
            }
        }
        return null;
    }

    static private class OAuthInfo {
        String code = UUID.randomUUID().toString();
        String token = UUID.randomUUID().toString();
        String user;

        OAuthInfo(String user) {
            this.user = user;
        }
    }

}

oauth.jsp

A JSP file that checks whether the user is logged in and passes the code to ManualWorks through a web browser redirect.

<%@ page contentType="text/html; charset=UTF-8" pageEncoding="UTF-8" %>

<%@ page import="com.threerabbitz.base.domain.User" %>
<%@ page import="com.threerabbitz.oauth.OAuthQueue" %>

<%
  String redirectUri = request.getParameter("redirect_uri");
  String state = request.getParameter("state");
  User user = (User) session.getAttribute("user");
  if (user != null) {
    String code = OAuthQueue.getInstance().getCode(user.getUserid());
    response.sendRedirect(redirectUri + "?code=" + code + "&state=" + state);
  } else {
    String path = "/oauth.jsp?redirect_uri=" + redirectUri + "&state=" + state;
    session.setAttribute("path", path);
    request.getRequestDispatcher("/login.jsp").forward(request, response);
  }
%>

oauth_token.jsp

A JSP file that receives a code and returns a token.

<%@ page contentType="application/json; charset=UTF-8" pageEncoding="UTF-8" %>

<%@ page import="com.threerabbitz.oauth.OAuthQueue" %>

<%
  String code = request.getParameter("code");
  String token = OAuthQueue.getInstance().getToken(code);
  if (token != null) {
    out.print("{");
    out.print("\"access_token\": \"" + token + "\",");
    out.print("\"expires_in\": 60");
    out.print("}");
  }
%>

oauth_user_profile.jsp

A JSP file that receives a token (access_token) and returns the user information.

<%@ page contentType="application/json; charset=UTF-8" pageEncoding="UTF-8" %>

<%@ page import="com.threerabbitz.base.domain.User" %>
<%@ page import="com.threerabbitz.base.domain.Users" %>
<%@ page import="com.threerabbitz.oauth.OAuthQueue" %>

<%
  String token = request.getParameter("access_token");
  User user = Users.find(OAuthQueue.getInstance().getUser(token));
  if (user != null) {
    out.print("{");
    out.print("\"id\": \"" + user.getUserid() + "\",");
    out.print("\"name\": \"" + user.getName() + "\",");
    out.print("\"email\": \"" + user.getEmail() + "\",");
    out.print("\"roles\": \"3rabbitz\",");
    out.print("\"groups\": \"3rabbitz\"");
    out.print("}");
  }
%>

What to Know When You Use OAuth

Logging Out

Even after users log out of ManualWorks, they are logged in again automatically because they are still logged in to the OAuth server. To prevent this, set the path to go to after logout as follows.

1. Open the Console.

2. Enter the following command.

set-preference -name LOGOUT_REDIRECT_PATH -value https://www.3rabbitz.com

Set the URL to go to after logout with this option. Usually, this URL handles logout from the OAuth server.

Other Notes

Users created in ManualWorks must log in at http://127.0.0.1:1975/r/signon/login, not through OAuth.

When a user logs in with OAuth for the first time, the user is created in ManualWorks automatically. If the license limit is exceeded, the user is created with only the Read Only role, regardless of the roles property.

Users who log in with OAuth cannot change their name, email address, or password in My Profile.
