Applying gzip Compression

To reduce network traffic, you can compress HTTP responses in gzip format. Set it up as follows.

1

Edit the server.xml file

  1. Open the 3RABBITZ_HOME/tomcat/conf/server.xml file.

  2. Add the following attributes to the Connector tag.

<Connector
    protocol="HTTP/1.1"
    port="1975"
    redirectPort="8443"
    connectionTimeout="20000"
    URIEncoding="UTF-8"
    maxPostSize="-1"
    Server="3Rabbitz"
    relaxedQueryChars="^`\|{}[]"
    compressibleMimeType="text/html,text/css,application/javascript,application/json"
    compression="on"
    compressionMinSize="2048"
    useSendfile="false"
/>

The attributes to add to the Connector tag are as follows.

Compression attributes of the Connector tag

Attribute

Recommended value

Description

compressibleMimeType

text/html,text/css,application/javascript,application/json

The response types to compress

compression

on

on turns compression on, and off turns it off. The default is off.

compressionMinSize

2048

The minimum size for gzip compression, in bytes.

Compressing even small responses can slow down the server.

useSendfile

false

Whether files are sent at the kernel level. The default is true. When it is true, large files are not compressed, so set it to false to compress all responses.

2

Restart ManualWorks.

After you edit the server.xml file, you must restart ManualWorks.

3

Check whether gzip compression is applied

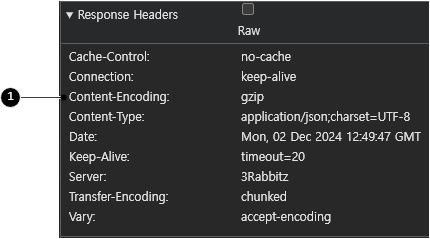

In the Network tab of the web browser developer tools, check the 1Content-Encoding of the server response.

This depends on the compressionMinSize attribute, so small responses are not compressed with gzip.
